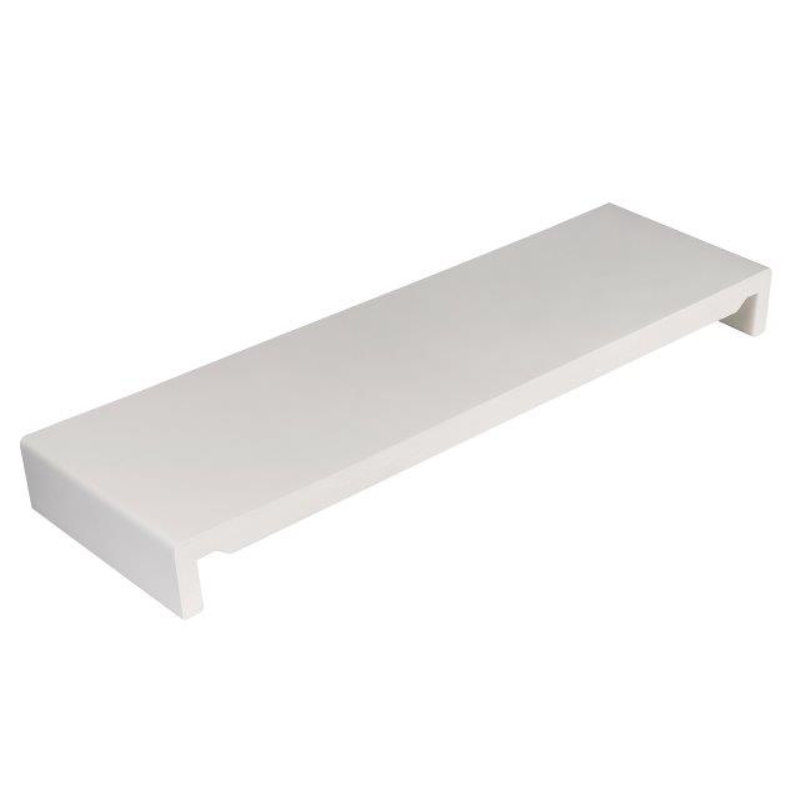

405mm Square 16mm Full Replacement Double Ended Fascia Board x 5m – White
This 405mm x 5m Concord 16mm Double-Ended Square Fascia Board in White is a high-density, load-bearing uPVC profile designed for maximum versatility in both new build construction and full replacement projects. Featuring a square edge on both sides, this double-ended board can be cut to size to create two separate fascia or used for deep eave and box-end applications. As a BBA Approved white profile, it is engineered for structural integrity, fixing directly to rafter ends to support the weight of guttering and eaves tiles without the need for timber backing.
Manufactured by Swish Building Products to ISO 9001:2015 standards, the board is co-extruded with a cellular PVC-U core and an impact-modified outer skin for long-term weather resistance. It features the integrated rebate system for a fast "push-fit" soffit installation and a 35mm return leg for secure base support.
Key Features
BBA Accredited: This white profile is BBA accredited (Certificate 02/3902), ensuring it meets ...
Find out moreFrequently bought together
Product description
This 405mm x 5m Concord 16mm Double-Ended Square Fascia Board in White is a high-density, load-bearing uPVC profile designed for maximum versatility in both new build construction and full replacement projects. Featuring a square edge on both sides, this double-ended board can be cut to size to create two separate fascia or used for deep eave and box-end applications. As a BBA Approved white profile, it is engineered for structural integrity, fixing directly to rafter ends to support the weight of guttering and eaves tiles without the need for timber backing.
Manufactured by Swish Building Products to ISO 9001:2015 standards, the board is co-extruded with a cellular PVC-U core and an impact-modified outer skin for long-term weather resistance. It features the integrated rebate system for a fast “push-fit” soffit installation and a 35mm return leg for secure base support.
Key Features
BBA Accredited: This white profile is BBA accredited (Certificate 02/3902), ensuring it meets stringent UK building regulations.
Double-Ended Versatility: 405mm width with dual finished edges, ideal for cutting into custom widths or for large-scale box-end construction.
Fire Performance: The white profiles achieve a Class 1 surface spread of flame when tested in accordance with BS 476-7: 1997.
Load-Bearing Strength: This 16mm board can support eaves tile loads of up to 10 kg per 1-metre length and allows for PVC-U gutters to be screw-fixed directly to the board.
Easy Installation: Fixes directly to rafter ends; no timber backing needed.
Low Maintenance: UV-stable and moisture-resistant; it will not rot, warp or crack.
Please Note: On-screen colours are for illustration purposes only. Due to variations in digital displays, screen settings, and lighting, actual product colours may vary slightly. We recommend ordering a sample or visiting a branch to view physical colour swatches prior to installation.
Product specifications
Technical specifications
Installation guides
Reviews
£101.63£121.96 Ex VATInc VAT
